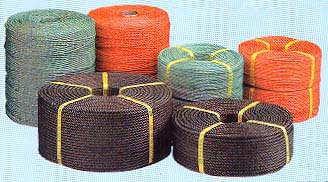

ROPE

3 STRANDS / 8 STRANDS / 12 STRANDS PP, PE, NYLON ROPE

3 STRANDS PP ROPE

8 STRANDS PP ROPE

3 STRANDS PE ROPE

3 STRANDS NYLON ROPE

3 STRANDS LEADED
  CORE ROPE PP

   BRAEDED LEAD
   CORE ROPE

3 STRANDS POLYTEX ROPE

3 STRANDS KURALON ROPE

3 STRANDS / 8 STRANDS ROPE

PP ROPE / PE ROPE

DIA		PP ROPE			PE ROPE
MM	INCH	CODE NO	(KG)	TON	CODE NO	(KG)	TON
3	1/8	0120 003	0.85	0.14	0124 003	0.90	0.11
4	5/32	0120 004	1.50	0.22	0124 004	1.60	0.18
5	3/16	0120 005	2.30	0.34	0124 005	2.50	0.30
6	1/4	0120 006	3.50	0.50	0124 006	3.60	0.42
8	5/16	0120 008	6.20	0.85	0124 008	6.40	0.75
9	3/8	0120 009	7.80	1.06	0124 009	8.10	0.91
10	13/32	0120 010	9.60	1.29	0124 010	10.00	1.11
12	15/32	0120 012	13.90	1.80	0124 012	15.00	1.20
14	9/16	0120 014	18.80	2.40	0124 014	19.00	1.80
16	5/8	0120 016	24.20	3.00	0124 016	25.00	2.20
18	23/32	0120 018	30.80	3.80	0124 018	32.00	3.00
20	13/16	0120 020	38.00	4.50	0124 020	40.00	3.60
22	7/8	0120 022	46.00	5.60	0124 022	48.00	4.20
24	15/16	0120 024	54.70	6.50	0124 024	57.00	5.00
26	1-1/32	0120 026	63.80	7.50	0124 026	67.00	5.80
28	1-1/8	0120 028	73.60	8.50	0124 028	78.00	6.50
30	1-3/16	0120 030	85.20	9.90	0124 030	90.00	7.40
32	1-1/4	0120 032	96.70	11.00	0124 032	102.00	8.20
34	1-11/32	0120 034	110.00	12.40	0124 034	115.00	9.20
36	1-7/16	0120 036	122.00	13.70	0124 036	129.00	10.40
38	1-1/2	0120 038	135.00	15.10	0124 038	144.00	11.50
40	1-19/32	0120 040	152.00	16.70	0124 040	159.00	12.50
WHITE COLOR - 0120 0xx BLUE COLOR - 0120 2xx GREEN COLOR - 0120 4xx YELLOW COLOR - 0120 6xx				WHITE COLOR - 0124 0xx BLUE COLOR - 0124 2xx GREEN COLOR - 0124 4xx YELLOW COLOR - 0124 6xx

3 STRANDS / 8 STRANDS ROPE

NYLON ROPE / CORE ROPE

DIA		NYLON ROPE			LEADED CORE ROPE
MM	INCH	CODE NO	(KG)	TON	CODE NO	(KG)	TON
2		0128 002			0132 002
3	1/8	0128 003	1.14	0.21	0132 003
4	5/32	0128 004	1.95	0.33	0132 004
5	3/16	0128 005	3.00	0.50	0132 005
6	1/4	0128 006	4.50	0.70	0132 006	5.28	0.50
8	5/16	0128 008	7.75	1.21	0132 008	9.50	0.85
9	3/8	0128 009	9.80	1.51	0132 009	12.00	1.06
10	13/32	0128 010	12.10	1.85	0132 010	15.00	1.20
12	15/32	0128 012	17.60	2.80	0132 012	21.00	1.80
14	9/16	0128 014	23.90	3.73	0132 014	28.50	2.40
16	5/8	0128 016	30.80	4.78	0132 016	37.50	3.00
18	23/32	0128 018	38.70	5.94	0132 018	45.00	3.80
20	13/16	0128 020	48.00	7.23	0132 020	59.00	4.50
22	7/8	0128 022	57.90	8.63	0132 022	70.00	5.60
24	15/16	0128 024	69.50	10.20	0132 024	82.50	6.50
26	1-1/32	0128 026	81.30	11.80	0132 026	99.00	7.50
28	1-1/8	0128 028	95.30	13.50	0132 028	115.00	8.50
30	1-3/16	0128 030	108.00	15.40	0132 030	127.50	9.90
32	1-1/4	0128 032	123.00	17.30	0132 032	142.50	11.00
34	1-11/32	0128 034	139.00	19.40	0132 034	163.00	12.40
36	1-7/16	0128 036	155.00	21.60	0132 036	182.00	12.70
38	1-1/2	0128 038	174.00	23.90	0132 038	203.00	15.10
40	1-19/32	0128 040	191.00	26.30	0132 040	225.00	16.70
WHITE COLOR - 0128 0xx BLUE COLOR - 0128 2xx GREEN COLOR - 0128 4xx YELLOW COLOR - 0128 6xx				WHITE COLOR - 0132 0xx BLUE COLOR - 0132 2xx GREEN COLOR - 0132 4xx YELLOW COLOR - 0132 6xx

3 STRANDS / 8 STRANDS ROPE

POLYTEX / KURALON ROPE

DIA		POLYTEX ROPE			KURALON ROPE
MM	INCH	CODE NO	(KG)	TON	CODE NO	(KG)	TON
2		0136 002			0140 002
3	1/8	0136 003	1.14	0.21	0140 003
4	5/32	0136 004	1.95	0.33	0140 004	2.00	0.15
5	3/16	0136 005	3.00	0.50	0140 005	3.10	0.23
6	1/4	0136 006	4.50	0.70	0140 006	4.28	0.33
8	5/16	0136 008	7.75	1.21	0140 008	7.50	0.56
9	3/8	0136 009	9.80	1.51	0140 009	10.00	0.70
10	13/32	0136 010	12.10	1.85	0140 010	12.00	0.95
12	15/32	0136 012	17.60	2.80	0140 012	17.00	1.37
14	9/16	0136 014	23.90	3.73	0140 014	24.50	1.83
16	5/8	0136 016	30.80	4.78	0140 016	31.50	2.34
18	23/32	0136 018	38.70	5.94	0140 018	39.80	2.92
20	13/16	0136 020	48.00	7.23	0140 020	49.00	3.55
22	7/8	0136 022	57.90	8.63	0140 022	59.20	4.24
24	15/16	0136 024	69.50	10.20	0140 024	70.40	4.98
26	1-1/32	0136 026	81.30	11.80	0140 026	82.50	5.78
28	1-1/8	0136 028	95.30	13.50	0140 028	95.60	6.64
30	1-3/16	0136 030	108.00	15.40	0140 030	109.00	7.55
32	1-1/4	0136 032	123.00	17.30	0140 032	124.00	8.51
34	1-11/32	0136 034	139.00	19.40	0140 034	140.00	9.53
36	1-7/16	0136 036	155.00	21.60	0140 036	157.00	10.60
38	1-1/2	0136 038	174.00	23.90	0140 038	175.00	11.70
40	1-19/32	0136 040	191.00	26.30	0140 040	194.00	12.90
WHITE COLOR - 0136 0xx BLUE COLOR - 0136 2xx GREEN COLOR - 0136 4xx YELLOW COLOR - 0136 6xx				WHITE COLOR - 0140 0xx BLUE COLOR - 0140 2xx GREEN COLOR - 0140 4xx YELLOW COLOR - 0140 6xx

TARRED MAIN LINE / BRANCH LINE / NYLON SEKIYAMA

TARRED MAIN LINE/ BRANCH LINE / NYLON SEKIYAMA

TARRED MAIN LINE

DIA		MAIN LINE
MM	METER	CODE NO	(KG)	B/S
6.8	400	0150 002	13.2	850
7.0	400	0150 003	14.2	880
7.2	400	0150 004	14.7	910
WHITE COLOR - 0150 0xx BLUE COLOR - 0150 2xx GREEN COLOR - 0150 4xx YELLOW COLOR - 0150 6xx

DIA		TARRED BRANCH LINE
MM	METER	CODE NO	(KG)	B/S
4.0	300	0153 002	4.1	250
4.2	300	0153 003	4.3	280
4.5	300	0153 004	4.7	310
4.8	300	0153 005	5.2	330
WHITE COLOR - 0153 0xx BLUE COLOR - 0153 2xx GREEN COLOR - 0153 4xx YELLOW COLOR - 0153 6xx

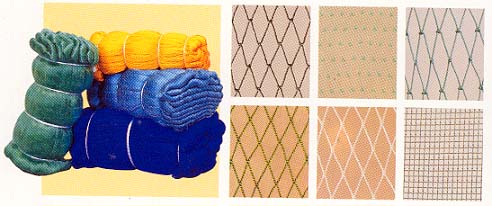

NYLON, POLYESTER, KURALON, PLYETHLENE FISHING NET

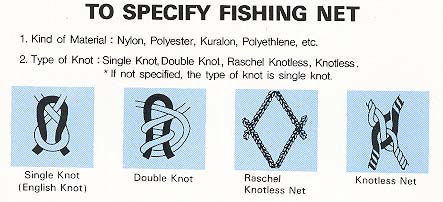

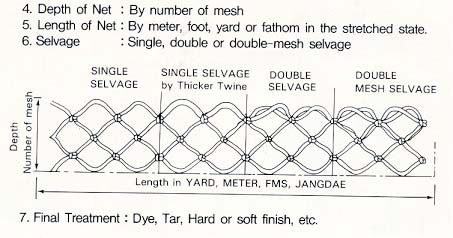

THE SPECIFICATIONS OF FISHING NET

SIZE					NYLON NET	POLYESTER NET	KURALON NET	PE NET
KNOT	MESH	NUMBER OF MESH	NET LENGTH	SELVAGE	CODE NO	CODE NO	CODE NO	CODE NO
					0171 002	0174 002	0177 002	0179 002
					0171 003	0174 003	0177 003	0179 003
					0171 004	0174 004	0177 004	0179 004
LIGHT BLUE - 017x 0xx DARK BLUE COLOR - 017x 2xx GREEN COLOR - 017x 4xx YELLOW COLOR - 017x 6xx
